Single-Use Bioprocess Components
aSURE™
Instrument Tees

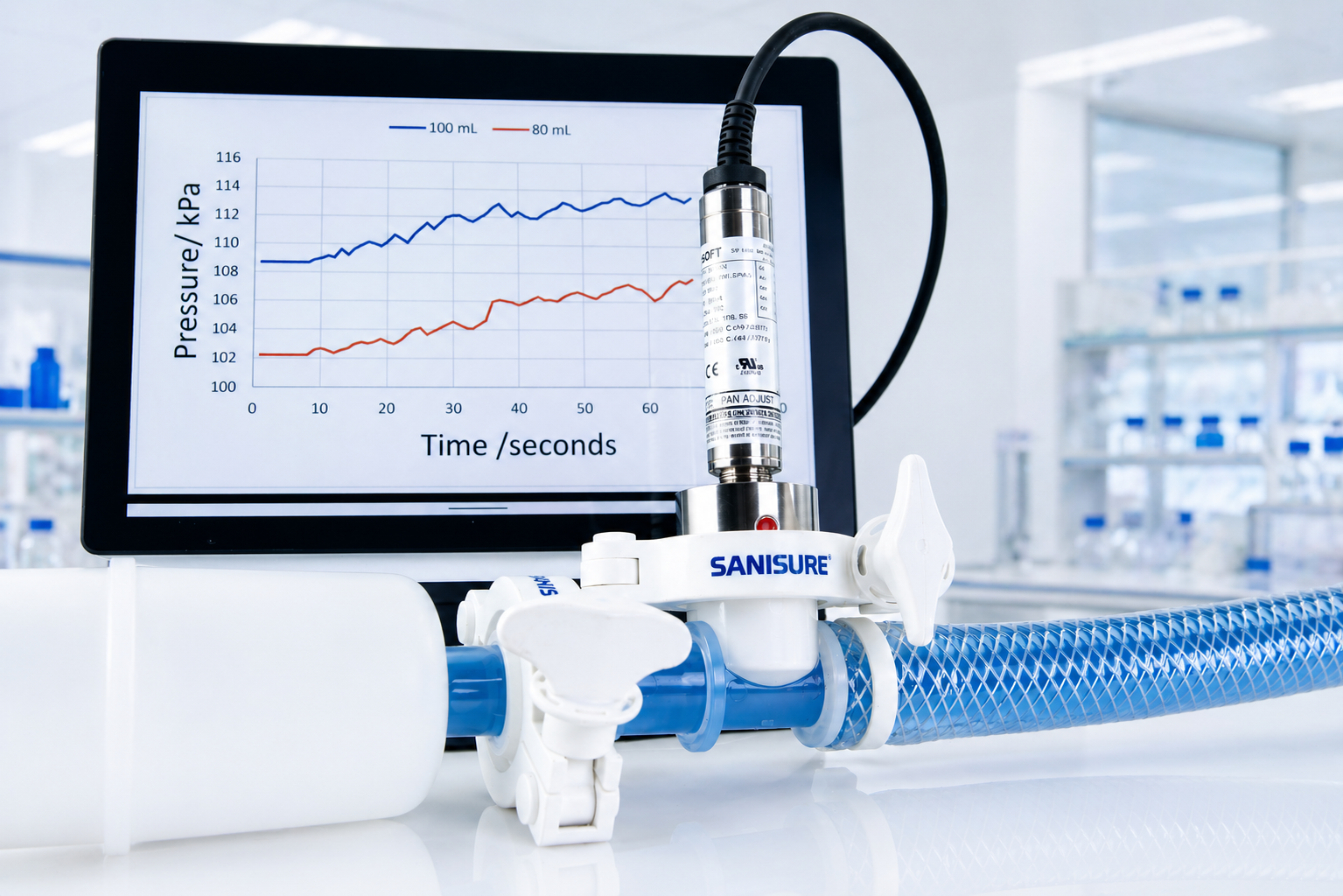

Single-Use Pressure Sensing Made Simple
- Sterile Barrier
- Superior Accuracy
- Compatibility and Flexibility
- Smaller Environmental Footprint
How It Works
A Unique Protective Barrier for Aseptic Applications
The aSURE™ Instrument Tee incorporates an elastomeric diaphragm directly into a sanitary instrument fitting — no solvents, no adhesives. The result is a gendered connection point that accepts virtually any standard 1.5" sanitary pressure sensor. Manufactured to ASME-BPE specifications and constructed with materials extensively tested for biocompatibility and extractables, aSURE™ Instrument Tees are built for demanding bioprocess applications.
Sterile Barrier by Design
The elastomeric diaphragm creates a continuous sterile barrier between the process fluid and the pressure sensor — eliminating dead legs and reducing contamination risk.
Superior Measurement Accuracy
Direct diaphragm contact with the process fluid delivers reliable, repeatable pressure readings without signal attenuation or offset from fluid column effects.
Universal Sensor Compatibility
Accepts virtually any standard 1.5" sanitary pressure sensor — integrates into existing process lines without instrument changes or adapters.
Reduced Environmental Footprint
Single-use format eliminates cleaning validation cycles and reduces water, chemical, and energy consumption compared to reusable alternatives.
Key Features
- Maintains a sterile barrier
- Industry leading accuracy
- Expansive instrument options with autonomy of manufacturer selection
- Lower cost of overall ownership
- Industry-standard wiring interface
- Improves measurement reliability due to no signal drift
- Fits standard and established calibration programs
- Sustainable materials in a one-piece design with fused diaphragm
Applications
- Tangential Flow Filtration-Feed, retentate and permeate streams
- Multi-stage depth filtration
- Bioreactor pressure monitoring
- Materials compatible with Dimethyl Sulfoxide (DMSO)
- Liquid chromatography
- Centrifugation/ downstream filtration
- Perfusion
Quality
- Manufactured in Controlled Environment and Packaged in ISO Class 7 Cleanroom Environment
- 100% Integrity Test to Ensure Barrier Properties
- Medical-grade materials pass USP Class VI Testing
- Animal-Derivative Ingredient Free (ADIF)
- REACH compliant
- RoHS and WEEE compliance
Superior Accuracy
Choose Your Instrument
Traditional fixed or tethered pressure sensors offer unique advantages over single-use pressure sensors in terms of accuracy, simplicity, and reliability. The aSURE™ instrument fitting eliminates the need for single-use pressure sensors and offers the flexibility to choose virtually any 1.5″ sanitary pressure-sensing instrument.
Additionally, the aSURE™ instrument fitting provides a practical solution for maintaining an aseptic barrier on complex manifold sets, eliminating the need for a gauge during the sterilization process.
The aSURE™ Tee is compatible with all common styles of sensors.
Simpler and More Universal Configuration
Standard Single-Use Sensor
- Sensor output 0.2584 mV/psi/volt
- Drift is common
- Proprietary control
- Interface required
- No other options, until now
aSURE™ Instrument Tee
- Robust 4-20mA loop
- Proven line stability
- No proprietary interface required
- Choose your instrument
– 4 wire proprietary data and cable
– 2 4-20mA loop
–Switch output
– 2 4-20mA loop
–Switch output
Two Trim Options
A Broad Range of Configurations
1″ TC X 1″ TC
3/4″ (MINI) TC X 3/4″ (MINI) TC
1″ TC X 1″ Monobarb
3/4″ (MINI) TC X 1/2″ Monobarb
3/4″ (MINI) TC X 1″ TC
1″ Monobarb X 1″ Monobarb
1/2″ Monobarb X 1/2″ Monobarb
